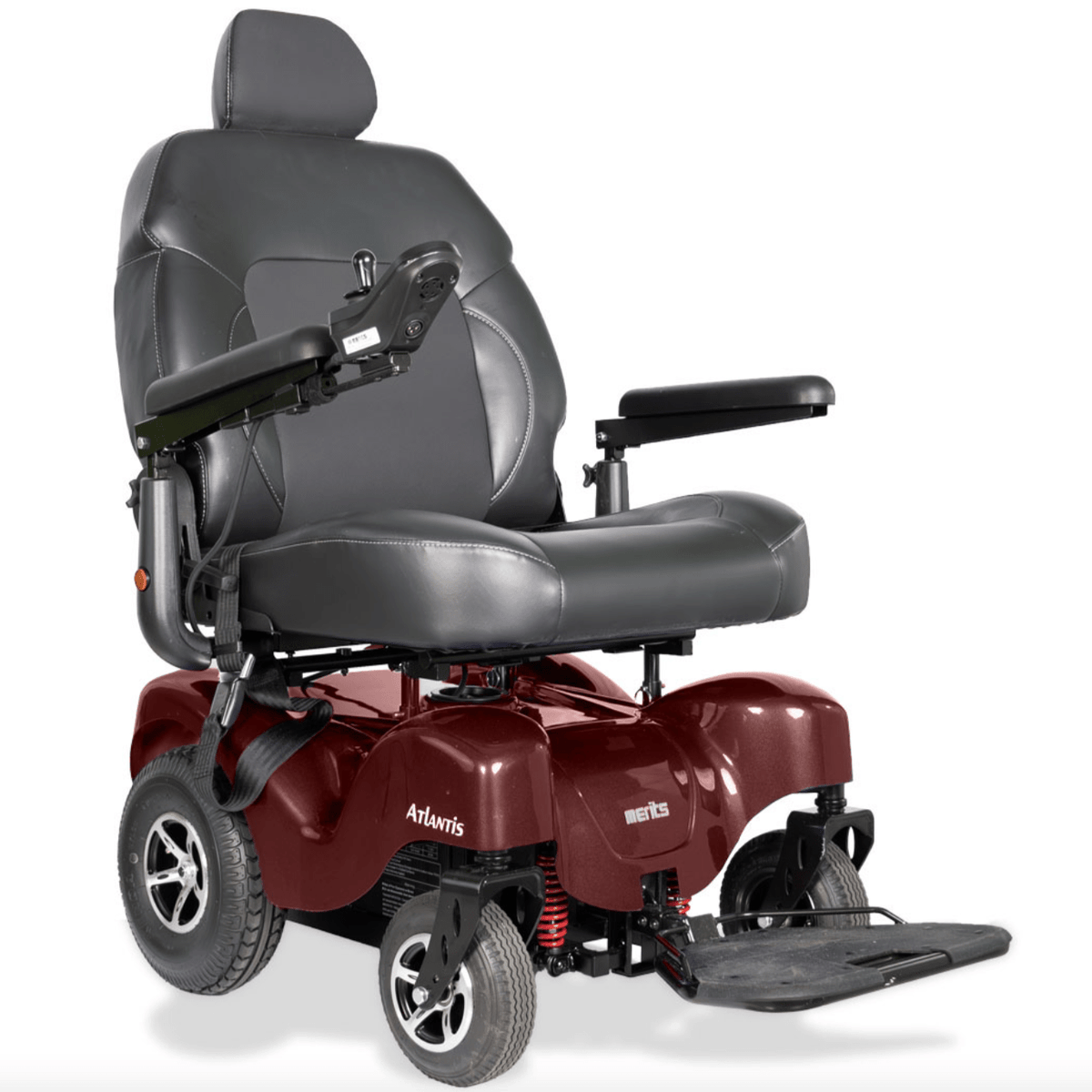

Merits Health Atlantis P710 heavy-duty power wheelchair
The Merits Health Atlantis P710 is a heavy-duty bariatric power wheelchair rated for 600 lb. Its seat frame stands on four posts and carries an extra-wide captain's seat, 22 to 26 inches across, with a high, semi-reclining back. Two 300 W in-line motors drive it at 5 mph, and range reaches 32 miles on two Group 24 batteries.
- Max user weight
- 600 lb
- Chair weight
- 304 lb
- Top speed
- 5 mph
- Range
- up to 32 miles
Merits Health Atlantis P710 key features
- 600 lb weight capacity
- Captain's seat 22-26 inches wide, 20-22 inches deep
- Reinforced four-post seat frame
- Dual 300 W in-line motors, 5 mph top speed
- Range of up to 32 miles
- Height-adjustable flip-up armrests
Who the Merits Health Atlantis P710 suits
For bariatric users who want a simple high-capacity chair with a roomy seat and long range. At 32 inches wide and 304 lb, it needs wide doors and a vehicle lift or ramp for transport.
Figures for comparing
- Weight
- 137.9 kg (304.0 lb)
- Max user weight
- 272.2 kg (600 lb)
- Range
- 51 km (32 miles)
- Top speed
- 8 km/h (5.0 mph)
The same units on every product, converted from the specifications below. Where a source gives two limits, the lower one is shown.
Merits Health Atlantis P710 specifications
| Max user weight | 600 lb |
|---|---|
| Chair weight | 304 lb |
| Top speed | 5 mph |
| Range | up to 32 miles |
| Seat widths | 22-26 in |
| Seat depths | 20-22 in |
| Overall size | 44 L x 32 W x 50 H in |
| Turning radius | 31.5 in |
| Ground clearance | 3 in |
| Motors | 2 x 300 W, 24V DC in-line |
| Batteries | 2 x 12V Group 24 |
| Maker country | Taiwan |
| Brand | Merits Health |
| Category | Power wheelchairs, Bariatric |
| Catalog ID | PW-024 |
Compared with the source page on 5 October 2026. Details can change, so we confirm them in your quote. Open the source page.
Merits Health Atlantis P710: common questions
How wide is the Merits Atlantis P710?
Overall width is 32 inches and length 44 inches. Seat widths run from 22 to 26 inches.
How far does the Atlantis P710 travel per charge?
Up to 32 miles, at a top speed of 5 mph.
What does the Atlantis P710 cost?
As a guide price, a US retailer lists it at USD 4,910. Request a quote for delivery to your location.
How to get a quote for the Merits Health Atlantis P710
Add it to your enquiry list
Press Add to enquiry. You can add other products and parts to the same list.
Tell us your country and needs
Send the list with your country, sizes and any options you want. No payment details are asked.
Get a personal reply
You receive availability, a price and delivery options by email, and decide after that.
