Price on request
Sentra EC Heavy-Duty Extra-Extra-Wide
Bariatric / heavy duty. Very high capacity steel folding wheelchair with extra-wide seats.
Invacare
Photo could not be loaded
Invacare · Bariatric / heavy duty · MW-056

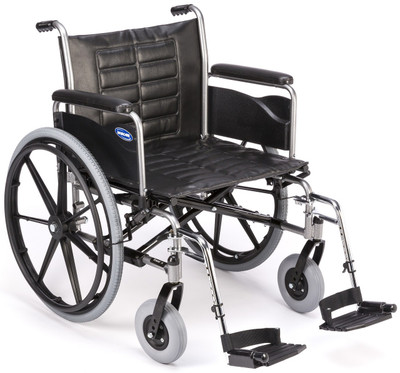

Invacare Tracer IV heavy-duty wheelchair
The Invacare Tracer IV is a heavy-duty manual wheelchair with a carbon steel frame, a double cross-brace and reinforced upholstery. The standard frame carries 350 lb and an optional build carries 450 lb. Seats run from 18 to 24 inches wide, and a hemi seat height of 17.5 inches is offered next to the 19.5 inch adult height.
- Chair weight
- 41-55 lb depending on configuration
- Max user weight
- 350 lb (450 lb option)
- Seat widths
- 18 / 20 / 22 / 24 in
- Seat depth
- 18 or 20 in
Invacare Tracer IV key features
- 350 lb capacity as standard, 450 lb as an option
- Seat widths of 18, 20, 22 or 24 inches
- Hemi 17.5 inch or adult 19.5 inch seat height
- Urethane rear tyres with dual-sealed precision bearings
- Desk or full-length arms, fixed or adjustable height
- Swing-away footrests or padded elevating legrests
Who the Invacare Tracer IV suits
A daily chair for heavier users who want a plain, hard-wearing steel frame. The hemi seat height helps people who propel with their feet, and the removable arms and swing-away footrests clear the way for transfers.
Figures for comparing
- Weight
- 18.6 kg (41.0 lb)
- Max user weight
- 158.8 kg (350 lb). 350 lb standard; 450 lb option
The same units on every product, converted from the specifications below. Where a source gives two limits, the lower one is shown.
Invacare Tracer IV specifications
| Chair weight | 41-55 lb depending on configuration |
|---|---|
| Max user weight | 350 lb (450 lb option) |
| Seat widths | 18 / 20 / 22 / 24 in |
| Seat depth | 18 or 20 in |
| Seat-to-floor height | 17.5 in hemi or 19.5 in adult |
| Back height | 16 in |
| Overall width | seat width + 8.5 in |
| Frame | Carbon steel, silver vein finish |
| Casters | 8 x 1.25 in (350 lb) or 8 x 1.75 in (450 lb) |
| Warranty | 5 years limited on frame and cross-braces |
| Maker country | USA |
| Brand | Invacare |
| Category | Positioning & special-function, Bariatric / heavy duty |
| Catalog ID | MW-056 |
Compared with the source page on 5 October 2026. Details can change, so we confirm them in your quote. Open the source page.
Invacare Tracer IV: common questions
What is the weight limit of the Invacare Tracer IV?
The standard frame is rated for 350 lb. A 450 lb frame is available as an option and uses wider 8 x 1.75 inch casters.
How much does the Tracer IV weigh?
Between 41 and 55 lb depending on capacity and seat size. The 350 lb frame is listed at 42 lb without front rigging.
What is the price of the Tracer IV?
As a guide price, one US retailer lists it at about USD 515, against an MSRP of USD 1,338.50. Ask for a quote for your size and options.
How to get a quote for the Invacare Tracer IV
Add it to your enquiry list
Press Add to enquiry. You can add other products and parts to the same list.
Tell us your country and needs
Send the list with your country, sizes and any options you want. No payment details are asked.
Get a personal reply
You receive availability, a price and delivery options by email, and decide after that.
